(II) PE Header: MS DOS Header, MS DOS Stub & Rich Header

---

The previous part of this blog series: PE Header: Overview

---

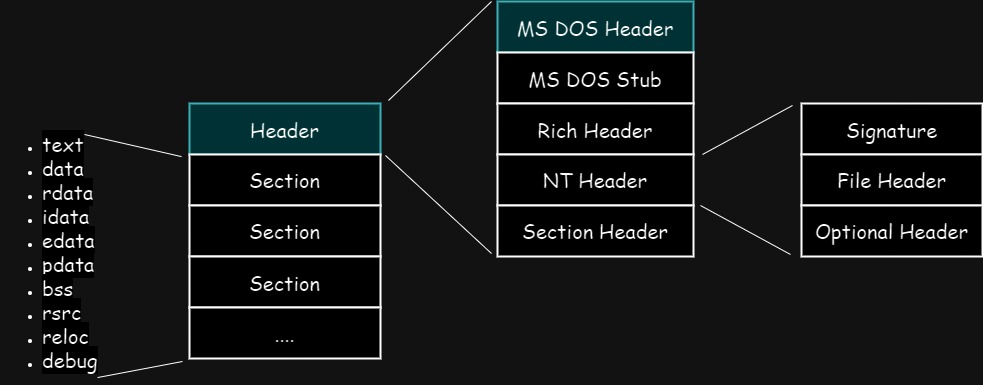

MS DOS Header

The PE file format starts with MS DOS header. The MS DOS header has been part of PE file format since v2 of MS-DOS operating system, but still have been kept for backward compatibility.

Example: If older OS like MS-DOS tries to load newer executable, the system will output error message from MS DOS Stub to prevent crash. The MS DOS Stub will be covered in next section.

The MS DOS header is 64-byte long structure, which is described below.

typedef struct _IMAGE_DOS_HEADER {      // DOS .EXE header
    WORD   e_magic;                     // Magic number
    WORD   e_cblp;                      // Bytes on last page of file
    WORD   e_cp;                        // Pages in file
    WORD   e_crlc;                      // Relocations
    WORD   e_cparhdr;                   // Size of header in paragraphs
    WORD   e_minalloc;                  // Minimum extra paragraphs needed
    WORD   e_maxalloc;                  // Maximum extra paragraphs needed
    WORD   e_ss;                        // Initial (relative) SS value
    WORD   e_sp;                        // Initial SP value
    WORD   e_csum;                      // Checksum
    WORD   e_ip;                        // Initial IP value
    WORD   e_cs;                        // Initial (relative) CS value
    WORD   e_lfarlc;                    // File address of relocation table
    WORD   e_ovno;                      // Overlay number
    WORD   e_res[4];                    // Reserved words
    WORD   e_oemid;                     // OEM identifier (for e_oeminfo)
    WORD   e_oeminfo;                   // OEM information; e_oemid specific
    WORD   e_res2[10];                  // Reserved words
    LONG   e_lfanew;                    // File address of new exe header
  } IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;

The important ones from the above structure are:

• e_magic: It is 2-byte value that points to the magic number, i.e. MZ or 0x4D5A. So it is also referred as MZ header.
• e_lfanew: It is a 4-byte value that points to the offset of PE or 0x5045 (Signature of NT Header). When OS loader tries to load and execute a PE file, it checks the value at this offset to ensure that its a valid PE file. Also this value help OS loader to locate the starting offset of NT Header, which holds other crucial information.

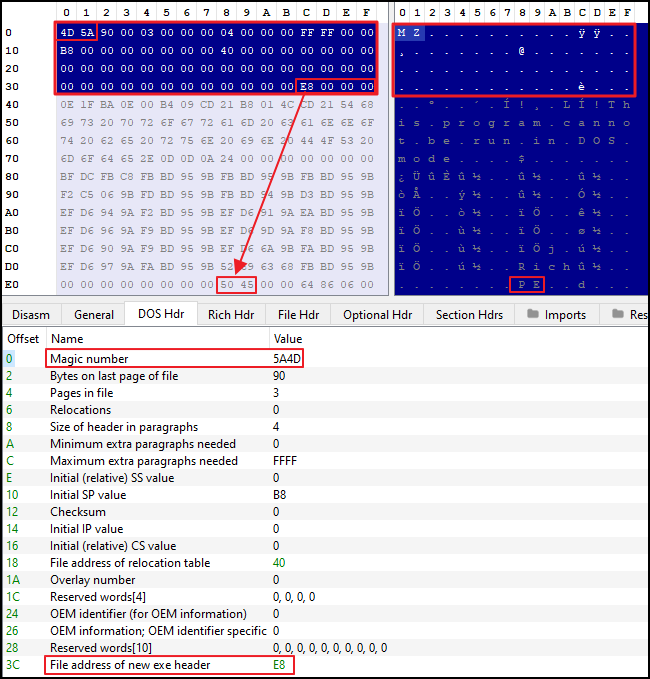

Lets now verify with PE-Bear. You can load C:\Windows\System32\calc.exe in the PE-Bear to follow along.

Here, the e_magic can be seen as ‘Magic number’ which value is 0x5A4D. But if you check the above hex view, the value is 0x4D5A. This is due to endianness, which dictates the order of sequence of bytes.

• Note: In memory, values are stored in little-endian format, while on disk, in networks, or in registers, big-endian format is used.
• The 0x5A4D is little endian because the PE-Bear reads the value from memory.

Also, the e_lfanew can be seen as ‘File address of new exe header’, which value is E8. If we check the E8 offset on above hex view format, the value is 0x5045 or PE.

---

MS DOS Stub

As mentioned above, if older OS like MS-DOS tries to load newer executable, the system will output error message from MS DOS Stub and exit.

The message is This program cannot be run in DOS mode. , which can be seen in PE-Bear below.

---

Rich Header

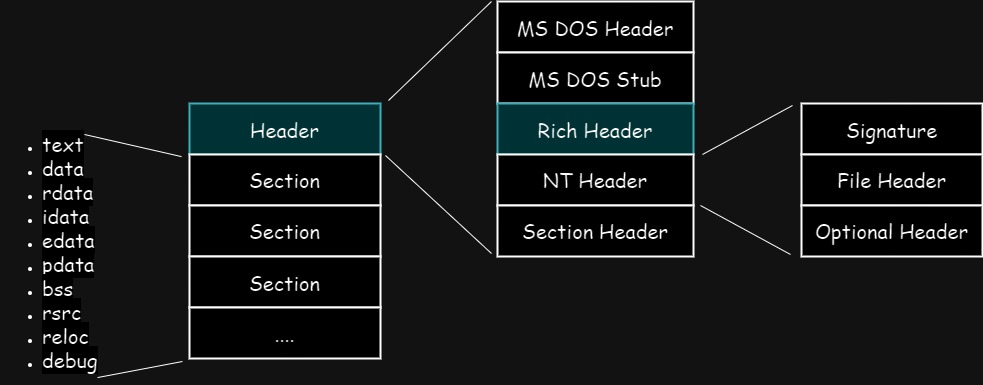

Immediately after the MS DOS Stub and before the start of NT Header, there is Rich Header. The Rich Header is present only on PE files built using Microsoft Visual Studio.

The Rich Header consist of XORed encrypted data followed by Rich signature and a 4-byte Checksum (XOR key). The XORed encrypted data consist of DanS signature, followed by padding and then metadata entries, which holds ProductId, BuildId, use Count and Visual Studio version.

Lets now verify with PE-Bear.

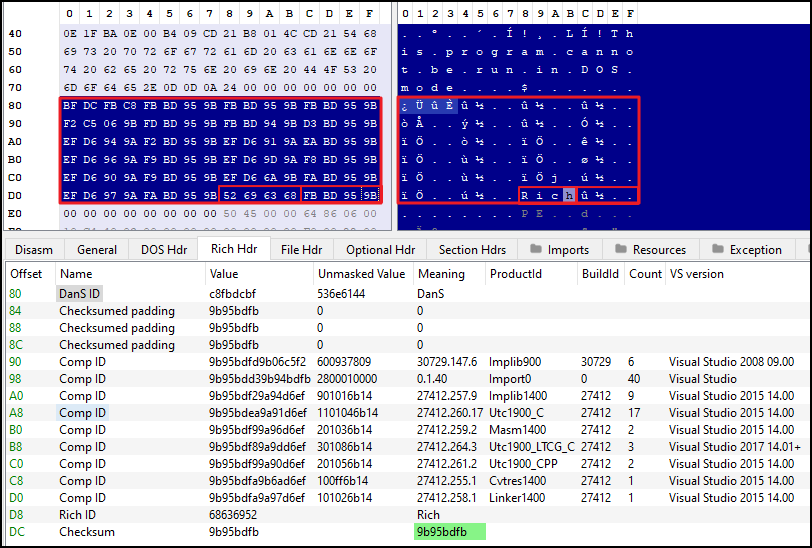

Here, the Rich Header is highlighted in the hex view. The values before Rich signature or 0x52696368 is XORed encrypted. The value after 0x52696368 is the Checksum (XOR key), which is 0xFBBD959B.

Using the XOR key as 0xFBBD959B , the XORed encrypted value is decrypted using the CyberChef.

In the decrypted content, the DanS signature can be seen. Following it contain the metadata mentioned above.

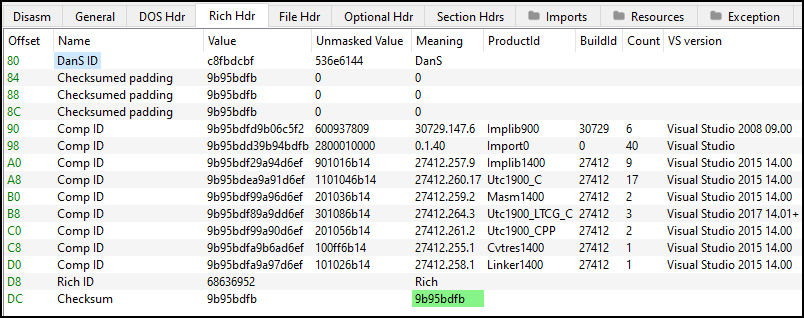

The XOR decryption and parsing of the decrypted values is done automatically by PE-Bear, which can be seen below. Again, note that the hex values are in little-endian.

All the metadata like ProductId, BuildId, use Count and Visual Studio version can be seen above.

---

The next part of the blog series: PE Header: NT Header

---
